vortice Schachtventilatorvort press Serie 110 ll timer 11968

SKU: 11968

341,76 €INKL. MwSt.

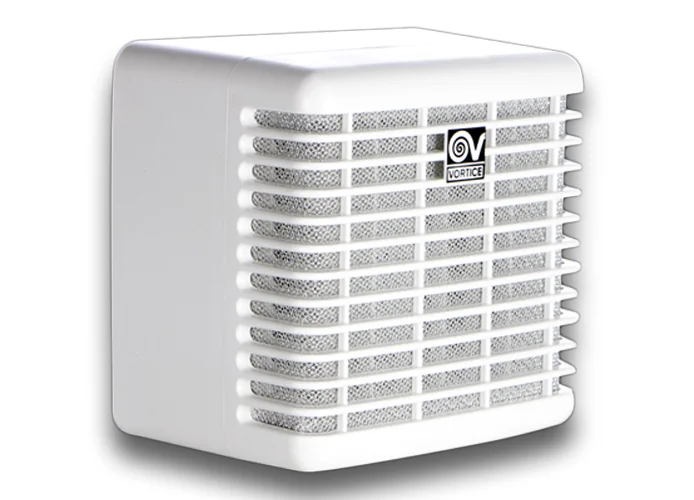

VORTICE - SCHACHTVENTILATOR ZUM ANSCHLUSS AN VERTIKAL-LÜFTUNGSSCHÄCHTE, ABZUGSROHRE ODER AN LÄNGERE ROHRLEITUNGEN, VORT PRESS LONG LIFE-SERIE 30000h TIMER

• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 100 MM
• 2 SPEED MOTOR WITH SHAFT TURNING IN BALL BEARINGS, COUPLED TO A FORWARD-BLADED CENTRIFUGAL IMPELLER.
• MINIMUM AIR FLOW: 55 M3/H
MAXIMUM AIR FLOW: 110 M3/H
• EQUIPPED WITH “SMART” TIMER: WHEN LIGHTS ARE SWITCHED ON, THE FAN WILL START UP AFTER 40”APPROX; WHEN LIGHTS ARE SWITCHED OFF, THE FAN STAYS ON FOR BETWEEN 30” AND 30’ (ADJUSTABLE), RUNNING AT MINIMUM SPEED.
• DOUBLE MOTOR-FAN ENCLOSURE, ANTIVIBRATION MOUNTS AND NON-RETURN DAMPER COMBINING TO ENSURE EXTREMELY QUIET OPERATION.
• REMOVABLE AND WASHABLE METAL MESH FILTER (DISHWASHER SAFE).
• CLOSURE WITH SILICONE DIAPHRAGM DESIGNED TO PREVENT BACKDRAUGHTS WHEN THE APPLIANCE IS OFF.
• VERTICAL OUTLET PORT SUPPLIED AS STANDARD WITH SPIGOT POSITIONABLE HORIZONTALLY BY MEANS OF DIVERTER.
• OUTLET PORT EQUIPPED WITH NON-RETURN DAMPER.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
• VORTICE SPEED CONTROLLER.

VORT PRESS Serie 110 LL TIMER  11968

ABSORBED POWER 1ST SPEED (W): 12
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 40
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,22
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,07
MAX. ABSORBED POWER AT MAX SPEED (W): 24
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 97
VOLTAGE (V): 220-240
WEIGHT (KG): 1,95
DELIVERY 1ST SPEED (L/S): 15,3
DELIVERY 1ST SPEED (M³/H): 55
MAX DELIVERY AT MAX SPEED (L/S): 30,6
MAX DELIVERY AT MAX SPEED (M³/H): 110
PRESSURE - 1ST SPEED (MMH20): 10
PRESSURE - 1ST SPEED (PA): 98
PRESSURE MAX - MAX SPEED (MMH20): 16
PRESSURE MAX - MAX SPEED (PA): 157
RPM MAX: 1760
RPM MIN: 925
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 41
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 30


SIZE A (MM): 202
SIZE B (MM): 147
SIZE C (MM): 30
SIZE D (MM): Ø 97
SIZE E (MM): 73

  • Marke: VORTICE
