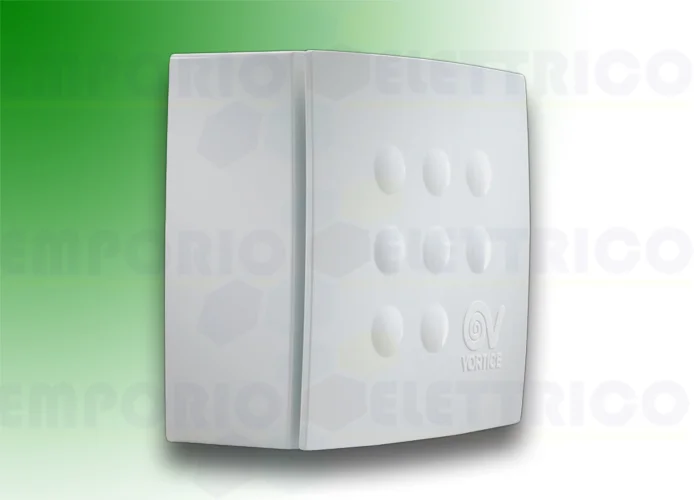

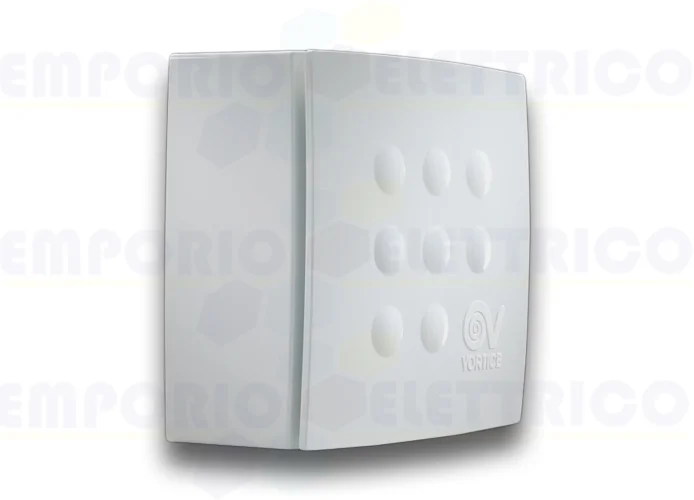

VORTICE - SCHACHTVENTILATOR ZUM ANSCHLUSS AN VERTIKAL-LÜFTUNGSSCHÄCHTE, ABZUGSROHRE ODER AN LÄNGERE ROHRLEITUNGEN, SERIE VORT QUADRO-SERIE
• MATERIAL: WHITE ABS PLASTIC
• CAPACITOR START 2-SPEED INDUCTION MOTOR COUPLED TO A FORWARD BLADED CENTRIFUGAL IMPELLER. EQUIPPED WITH THERMAL OVERLOAD CUTOUT AND SELF-LUBRICATING BUSHINGS.
• NOMINAL DIAMETER 100 MM.
• ELECTRONIC PCB WITH HUMIDISTAT FUNCTION PILOTED BY RH% SENSOR (4 PRESET THRESHOLDS: 60%, 70%, 80%, 90%, SELECTABLE DURING INSTALLATION), DESIGNED TO SWITCH ON THE FAN AUTOMATICALLY. THE PCB INCORPORATES AN ELECTRONIC TIMER THAT SHUTS OFF THE MOTOR AUTOMATICALLY WHEN RELATIVE HUMIDITY RETURNS BELOW THE THRESHOLD VALUE. THE TIMER SETTING IS SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.
VORT QUADRO Serie MICRO 100 T HCS 11945
ABSORBED POWER 1ST SPEED (W): 20
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,13
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,10
MAX. ABSORBED POWER AT MAX SPEED (W): 28
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 92,5/97
VOLTAGE (V): 220-240
WEIGHT (KG): 1,82
DELIVERY 1ST SPEED (L/S): 18
DELIVERY 1ST SPEED (M³/H): 65
MAX DELIVERY AT MAX SPEED (L/S): 25
MAX DELIVERY AT MAX SPEED (M³/H): 90
PRESSURE - 1ST SPEED (MMH20): 16
PRESSURE - 1ST SPEED (PA): 157
PRESSURE MAX - MAX SPEED (MMH20): 22
PRESSURE MAX - MAX SPEED (PA): 216
RPM MAX: 1600
RPM MIN: 1180
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 39,2
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 32,3
SIZE A (MM): 239
SIZE B (MM): 195
SIZE C (MM): 197
SIZE D (MM): 85
SIZE E (MM): 74
SIZE F (MM): 64
SIZE G (MM): 60
SIZE H (MM): 97
SIZE I (MM): 100
SIZE L (MM): 20
SIZE T (MM): 117
