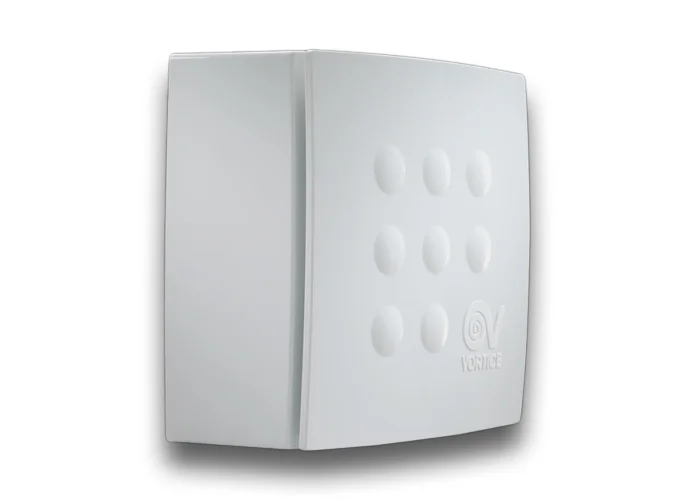

vortice Schachtventilator vort quadro Serie micro 100 t 11940

SKU: 11940

237,00 €  210,93 €INKL. MwSt.

VORTICE - SCHACHTVENTILATOR ZUM ANSCHLUSS AN VERTIKAL-LÜFTUNGSSCHÄCHTE, ABZUGSROHRE ODER AN LÄNGERE ROHRLEITUNGEN, SERIE VORT QUADRO-SERIE

• MATERIAL: WHITE ABS PLASTIC
• CAPACITOR START 2-SPEED INDUCTION MOTOR COUPLED TO A FORWARD BLADED CENTRIFUGAL IMPELLER. EQUIPPED WITH THERMAL OVERLOAD CUTOUT AND SELF-LUBRICATING BUSHINGS.
• NOMINAL DIAMETER 100 MM.
• MINIMUM AIR FLOW 65 M3/H
MAXIMUM AIR FLOW: 90 M3/H
• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.



VORT QUADRO Serie MICRO 100 T  11940

ABSORBED POWER 1ST SPEED (W): 20
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,13
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,10
MAX. ABSORBED POWER AT MAX SPEED (W): 28
NOMINAL DIAMETER (MM): 100
Ø DISCHARGE HOLE (MM): 92,5/97
VOLTAGE (V): 220-240
WEIGHT (KG): 1,82
DELIVERY 1ST SPEED (L/S): 18
DELIVERY 1ST SPEED (M³/H): 65
MAX DELIVERY AT MAX SPEED (L/S): 25
MAX DELIVERY AT MAX SPEED (M³/H): 90
PRESSURE - 1ST SPEED (MMH20): 16
PRESSURE - 1ST SPEED (PA): 157
PRESSURE MAX - MAX SPEED (MMH20): 22
PRESSURE MAX - MAX SPEED (PA): 216
RPM MAX: 1600
RPM MIN: 1180
SOUND PRESSURE IN FREE AIR CONDITIONS [DB(A)] 3M: 32,3
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED: 39,2
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED: 32,3


SIZE A (MM): 239
SIZE B (MM): 195
SIZE C (MM): 197
SIZE D (MM): 85
SIZE E (MM): 74
SIZE F (MM): 64
SIZE G (MM): 60
SIZE H (MM): 97
SIZE I (MM): 100
SIZE L (MM): 20
SIZE T (MM): 117

  • Marke: VORTICE
