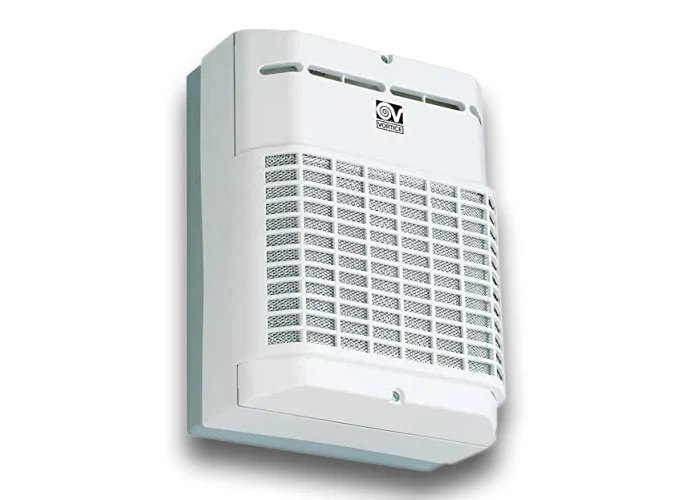

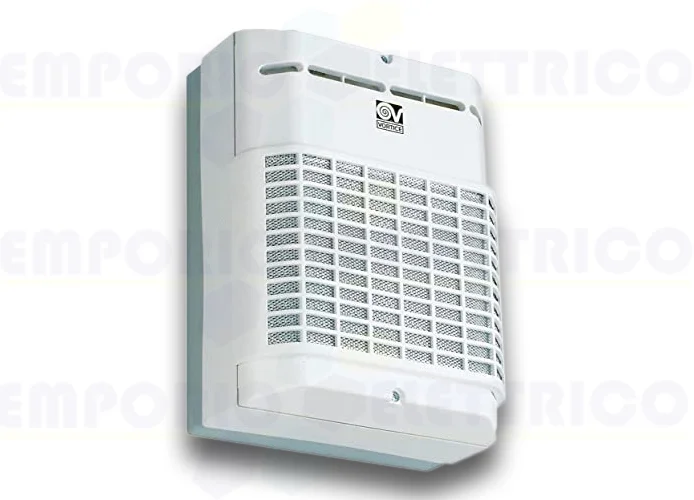

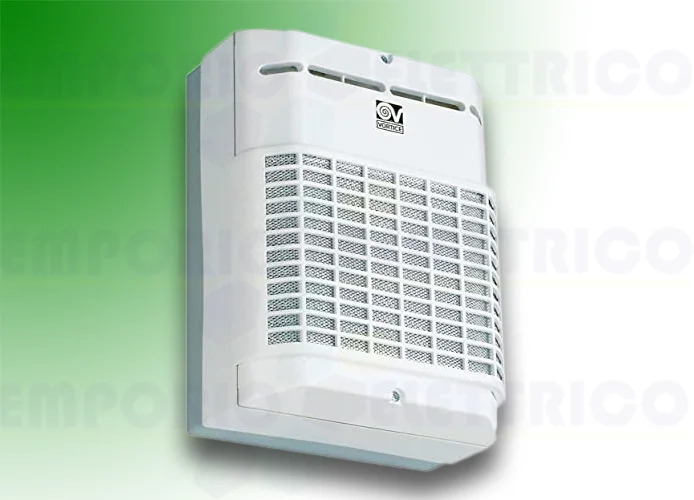

VORTICE - SCHACHTVENTILATOR ZUM ANSCHLUSS AN VERTIKAL-LÜFTUNGSSCHÄCHTE, ABZUGSROHRE ODER AN LÄNGERE ROHRLEITUNGEN, VORT MAX S-SERIE 11970
- POLYSTYRENE CONSTRUCTION (PS).
- NOMINAL DIAMETER 100 MM.
- HIGH EFFICIENCY ELECTRONIC COMMUTATION MOTOR (EC), COMBINED WITH A CENTRIFUGAL IMPELLER, WHICH GUARANTEES A WIDE RANGE OF ADJUSTMENTS AND A SIGNIFICANT REDUCTION IN CONSUMPTION, WITH THE SAME PERFORMANCE.
- PROTECTION GRILLE AND FILTER IN MULTILAYER ALUMINUM MESH IN FRONT OF THE PRODUCT, EASILY REMOVABLE AND WASHABLE.
- BUTTERFLY CLOSURE TO AVOID AIR RE-ENTRY WHEN THE APPLIANCE IS SWITCHED OFF.
- SATURATED FILTER SIGNALLING DEVICE.
- EQUIPPED WITH A 120 MM DIAMETER PIPE OUTLET CONNECTION.
- SPEED CONTROLLABLE BY VORTEX REGULATOR.
VORT MAX S Serie 11970
| Ø NW (mm) | 100/120 |
| Frequenz (Hz) | 50 |
| Isolation | II° Klasse |
| Gewicht (Kg) | 3 |
| Leistungsaufnahme (W) | 80 |
| Raumtemperatur C° | 40 |
| Corrente assorbita (A) | 0,37 |
| Leistungsaufnahme 1° (W) | 80 |
| Leistungsaufnahme 2° (W) | 80 |
| Spannung (V) 220/240V | Drehzal 2° | 2200 | | Drehzal | 2200 | | Luftleistung 2° (m³/h) | 290/370 l/s 80,6/102,8 | | Luftleistung (m³/h) | 290/370 | | Reichweite (l/s) | 80,6/102,8 | | Pressung 2° (mm/H2O) | 44 Pa 432 | | Pressung (mm/H2O)
| 44 | | Abmessung A (mm) | 406 | | Abmessung B (mm) | 305 | | Abmessung C (mm) | 149 | | Abmessung D (mm) | Ø100/Ø120 | | Abmessung E (mm) | 25 | | Abmessung F (mm) | 75 | | | | |
complementary accessories:
- Electronic speed controller VORTEX 12966
- Built-in speed controller VORTICE 12971
