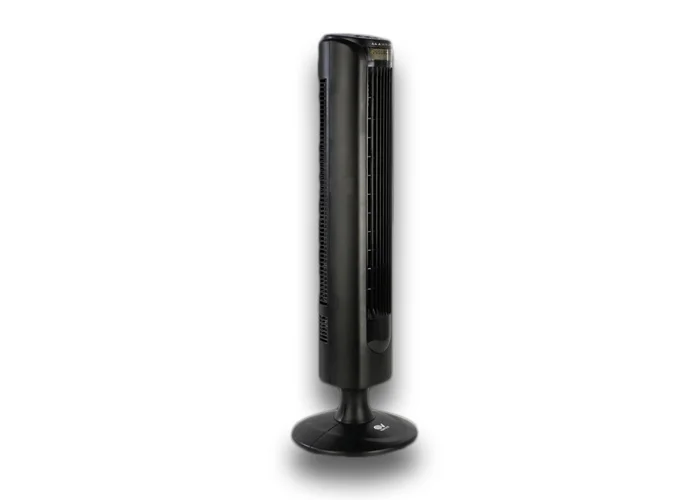

VORTICE - SÄULENVENTILATOR SERIE ARIANTE, FARBE: GRAU
• OUTER CASING, BASE, TANGENTIAL (CROSS-FLOW) IMPELLER, SCROLL AND REMOTE CONTROL SHELL MOULDED FROM THERMOPLASTIC RESIN (ABS).
• SUPPORTING STRUCTURE PROVIDED BY TWO EXTRUDED ALUMINIUM COLUMNS, ONE ON EITHER SIDE, CONNECTED TO THE BASE AND ROTATABLE ABOUT A VERTICAL AXIS THROUGH 60° APPROX TO CHANNEL THE FLOW OF AIR IN THE PREFERRED DIRECTION
• 3 SPEED INDUCTION MOTOR WITH START CAPACITOR, SHAFT TURNING IN HIGH QUALITY SELF-ALIGNING AND SELF-LUBRICATING BUSHINGS; PROTECTED BY THERMAL LOAD LIMITER
• MECHANISM INDUCING OSCILLATION ABOUT VERTICAL AXIS, DRIVEN BY SYNCHRONOUS ELECTRIC MOTOR.
• INFRARED REMOTE CONTROL SUPPLIED AS STANDARD
• REMOTE CONTROL FUNCTIONS DUPLICATED BY SOFT TOUCH LOCAL CONTROLS POSITIONED AT THE TOP OF THE TOWER AND PROTECTED BY A COVER PROVIDED WITH CUSHIONED RETAINING CATCH.
• SET OF LUMINOUS INDICATORS LOCATED ON THE TOP FRONT SECTION OF THE TOWER CASING, SHOWING THE SELECTED OPERATING MODE OF THE APPLIANCE
• PVC POWER CORD, LENGTH 2 M, WITH 10A MOULDED PLUG (VERSIONS ALSO AVAILABLE WITH SCHUKO 16A PLUG AND UK 13A PLUG).
ARIANTE TOWER SUPER 63015
ABSORBED CURRENT MAX (A): 0,18
ABSORBED POWER MAX (W): 40
FREQUENCY (HZ): 50
INSULATION CLASS: II°
VOLTAGE (V): 220-240
WEIGHT (KG): 5,2
AIRFLOW SPEED AT MAX SPEED (M/S): 2,52
DELIVERY MAX (M³/H): 2323
DELIVERY MAX (M³/MIN): 38,72
POWER IN STAND-BY MODE (W): 0.1577
RPM: 1200
SERVICE VALUE (M³/MIN)/W: 0,968
SOUND POWER LEVEL LW [DB(A)]: 55,2
SIZE A (MM): 306
SIZE B (MM): 172
SIZE C (MM): 1050
