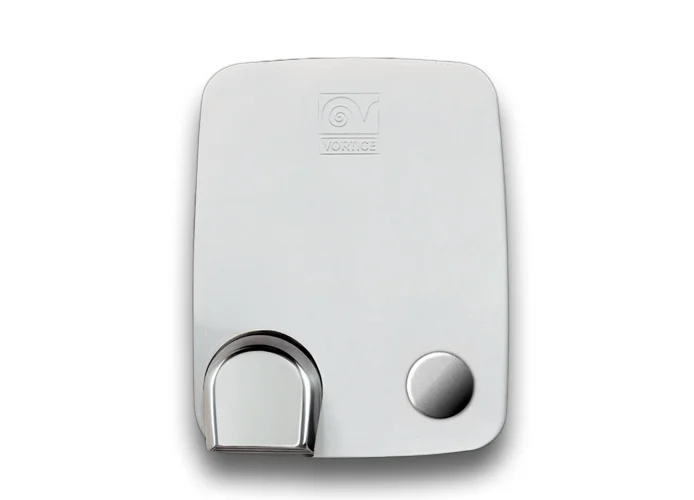

VORTICE - MANUELLER HÄNDETROCKNER
• FRONT COVER MADE OF PRESSURE DIECAST ALUMINIUM WITH SCRATCH-RESISTANT WHITE POWDER-COATED FINISH, CLOSURE WITH VANDAL-PROOF SCREWS.
• PLASTIC WALL MOUNTING FLANGE (TALC-FILLED PP).
• NOZZLE ROTATABLE THROUGH 360°, GRILLE WITH SCRATCH-RESISTANT POWDER-COATED FINISH, TRANSPARENT PROTECTION.
• SCROLL AND MOTOR MOUNTING COWL MOULDED FROM ABS
• AC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS, COUPLED TO FORWARD-BLADED CENTRIFUGAL IMPELLER.
• HEATING ELEMENT PROTECTED BY 2 DEVICES: THERMAL FUSE AND RESETTABLE THERMAL OVERLOAD LIMITER.
• AIR FLOW 190 M3/H.
• DRYER OPERATED MANUALLY BY PUSH BUTTON. EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE FAN MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 20"-60". APPLIANCE SHUTS DOWN AUTOMATICALLY IN THE EVENT OF THE AIR INLET GRILLE OR THE WARM AIR OUTLET NOZZLE BEING OBSTRUCTED INTENTIONALLY OR ACCIDENTALLY.
• IMQ SAFETY CERTIFICATION.
METAL DRY Serie 19221
ABSORBED CURRENT MAX (A): 8,5
ABSORBED POWER MAX (W): 1950
FREQUENCY (HZ): 50-60
INSULATION CLASS: II°
IP: X4
MOTOR POWER (W): 140
SHOCK RESISTANCE RATING (IK): 10
VOLTAGE (V): 220-240
WEIGHT (KG): 7,2
DELIVERY MAX (L/S): 53
DELIVERY MAX (M³/H): 190
POWER IN STAND-BY MODE (W): 0,4737
SOUND PRESSURE LEVEL LP [DB (A)] 1M: 69,8
SIZE A (MM): 280
SIZE B (MM): 355
SIZE C (MM): 202
SIZE D (MM): 139
