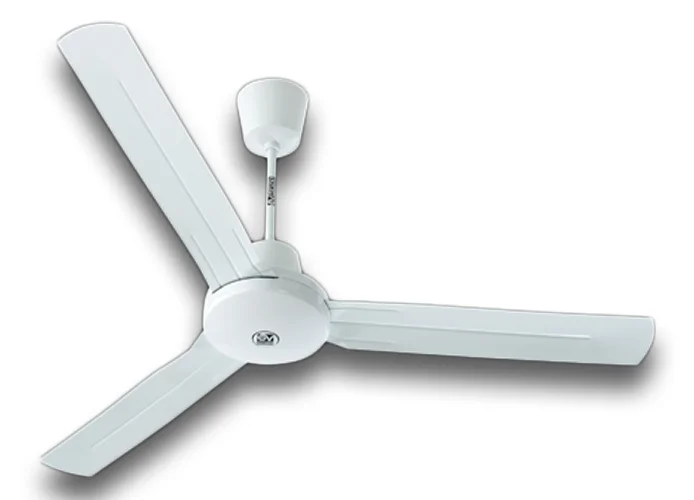

VORTICE - DECKENVENTILATOR SERIE NORDIK INTERNATIONAL PLUS UMKEHRBAR 140/56" WEIß
SCHUTZART STRAHLWASSERGESCHÜTZT, FÜR EXTERNE VERWENDUNG
• NOMINAL DIAMETER OF BLADES 1400 MM
• TOP AND BOTTOM MOTOR COVERS MOULDED FROM HEAT-RESISTANT AND UV-RESISTANT THERMOPLASTIC RESIN (ABS), COLOUR WHITE
• WIRING CONNECTIONS AT END OF CEILING ROD CONCEALED BY DOMES MOULDED FROM IMPACT- AND UV-RESISTANT PP, COLOUR WHITE.
• SINGLE PHASE START CAPACITOR MOTOR WITH EXTERNAL ROTOR, AND SHAFT TURNING IN BALL BEARINGS. DIRECTION OF ROTATION REVERSIBLE.
• MAXIMUM AIR FLOW: 13,500 M3/H.
• 3 GALVANIZED SHEET STEEL BLADES POWDER COATED WITH SCRATCH-RESISTANT POLYESTER, COLOUR WHITE.
• STEEL CEILING ROD WITH POLYESTER POWDER COATED FINISH, COLOUR WHITE, LENGTH 375 MM.
• BAG OF ACCESSORIES CONTAINING NUTS AND BOLTS REQUIRED FOR ASSEMBLY OF BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.
• SPEED SELECTABLE BY WAY OF CONTROL UNITS (OPTIONAL)
• ENCLOSURE RATING IPX5 ENSURING COMPLETE PROTECTION FROM WATER SPRAY.
NORDIK INTERNATIONAL PLUS 140/56" IPX5 61742
ABSORBED CURRENT MAX (A): 0,33
ABSORBED POWER MAX (W): 70
BLADES DIAMETER: 1422
FREQUENCY (HZ): 50
INSULATION CLASS: I°
IP: X5
MOTOR POWER (W): 70
VOLTAGE (V): 220-240
WEIGHT (KG): 6,70
AIRFLOW SPEED AT MAX SPEED (M/S): 1,69
DELIVERY MAX (M³/H): 13500
DELIVERY MAX (M³/MIN): 225,00
RPM: 231
SERVICE VALUE (M³/MIN)/W: 3,214
SOUND POWER LEVEL LW [DB(A)]: 52,1
SIZE A (MM): Ø 1422
SIZE B (MM): Ø 230
SIZE C (MM): 495
