VORTICE - NORDIK HEAVY DUTY DECKENVENTILATOR, DURCHMESSER 160, FARBE: GRAU/SCHWARZ
IDEAL FÜR DEN EINSATZ IN DER INDUSTRIELLEN UND GEWERBLICHEN PRODUKTION
• DIE-CASTED EPOXY PAINTED MOTOR COVERS, COLOUR BLACK, SEALED WITH EPDM GASKETS TO PREVENT DUST OR WATER ENTRY.
• CUPS MADE OF ELECTROGALVANIZED STEEL PLATE PROTECTED BY A DOUBLE LAYER OF EPOXY PAINT.
• NOMINAL DIAMETER OF BLADES 1600 MM.
• SINGLE-PHASE EXTERNAL ROTOR MOTOR, SHAFT MOUNTED ON BALL BEARINGS.
• 3 BLADES MADE OF ELECTROGALVANIZED STEEL PLATE PROTECTED BY A DOUBLE LAYER OF EPOXY PAINT.
• 4 HOLE SUPPORT PLATE COMPATIBLE WITH DIFFERENT TYPES OF CEILINGS, EVEN HIGHLY SLANTED.
• LIFELINE TO PREVENT ANY RISK OF FALLING IN CASE OF UNCORRECT INSTALLATION OF THE PRODUCT.
• POSSIBILITY OF AUTOMATIC ADJUSTMENT OF UP TO 16 FANS SIMULTANEOUSLY, IN RELATION TO THE DIFFERENTIAL MEASURED BY TWO TEMPERATURE SENSORS (VORT DELTA T OPTIONAL).
• NUTS AND BOLTS, CEILING HOOK AND RUBBER MADE DAMPER SUPPLIED WITH THE PRODUCT.
• ADJUSTABLE SPEED CONTROL THROUGH AUTO-TRANSFORMER OR MULTIPLE ELECTRONIC DEVICES ALLOWED (OPTIONALS)

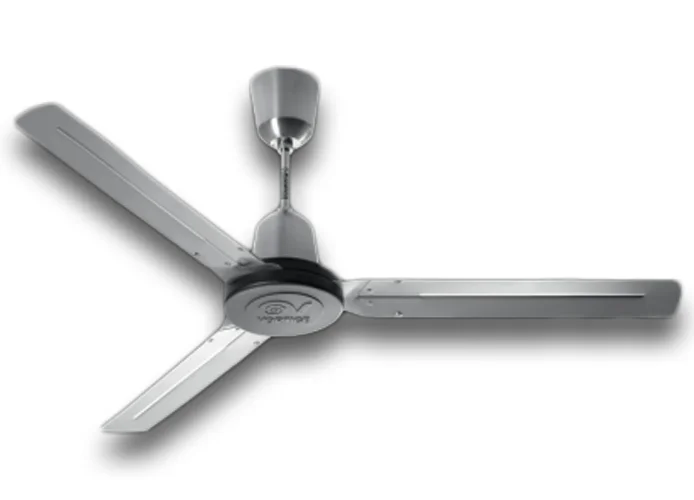

(DAS BILD BEZIEHT SICH AUF DAS MODELL Ø 120 CM)
NORDIK HEAVY DUTY 160 GRAU/SCHWARZ 61022
ABSORBED CURRENT MAX (A): 0,37
ABSORBED POWER MAX (W): 85
BLADES DIAMETER: 1524
FREQUENCY (HZ): 50
INSULATION CLASS: I°
IP: 55
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MOTOR POWER (W): 85
VOLTAGE (V): 230
WEIGHT (KG): 8,6
AIRFLOW SPEED AT MAX SPEED (M/S): 1,85
DELIVERY MAX (M³/H): 19300
DELIVERY MAX (M³/MIN): 321,6
RPM: 210
SERVICE VALUE (M³/MIN)/W: 3,78
SOUND POWER LEVEL LW [DB(A)]: 55,6
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 38,09
SIZE A (MM): Ø 1524
SIZE B (MM): Ø 230
SIZE C (MM): 495
