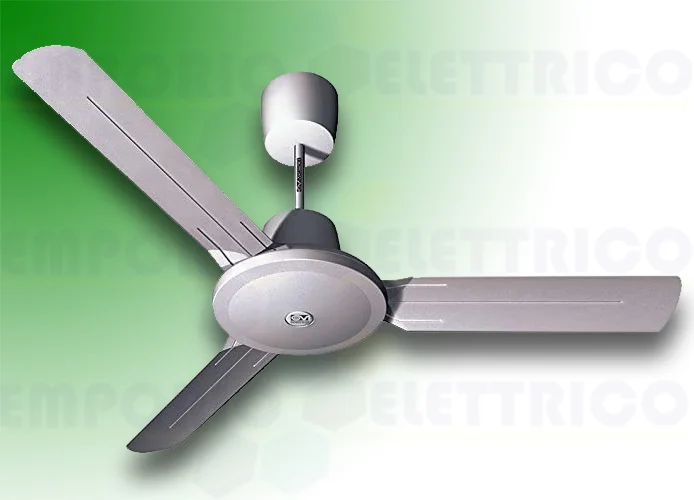

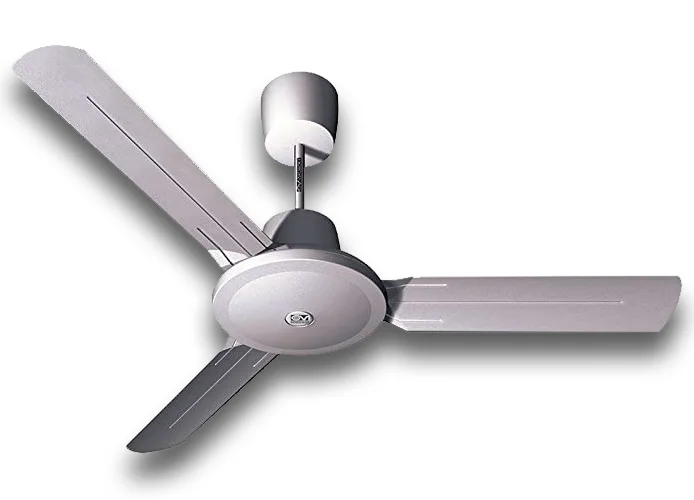

VORTICE - UMKEHRBARER DECKENVENTILATOR SERIE NORDIK EVOLUTION, DURCHMESSER 140/56" LACK SILBER
• NOMINAL DIAMETER OF BLADES 1400 MM
• TOP AND BOTTOM MOTOR COVERS MOULDED FROM HEAT-RESISTANT AND UV-RESISTANT THERMOPLASTIC RESIN (ABS), COLOUR SILVER.
• WIRING CONNECTIONS AT END OF CEILING ROD CONCEALED BY DOMES MOULDED FROM IMPACT- AND UV-RESISTANT THERMOPLASTIC RESIN (PP).
• SINGLE PHASE START CAPACITOR MOTOR WITH EXTERNAL ROTOR, AND SHAFT TURNING IN BALL BEARINGS. DIRECTION OF ROTATION REVERSIBLE.
• MAXIMUM AIR FLOW 16,586 M3/H
• 3 GALVANIZED SHEET STEEL BLADES POWDER COATED WITH SCRATCH-RESISTANT POLYESTER, COLOUR SILVER.
• STEEL CEILING ROD WITH SCRATCH-RESISTANT POLYESTER POWDER COATED FINISH, COLOUR SILVER, LENGTH 375 MM.
• BAG OF ACCESSORIES CONTAINING NUTS AND BOLTS REQUIRED FOR ASSEMBLY OF BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.
• FACTORY-PREPARED TO ACCEPT 2 SPECIFIC OPTIONAL LIGHT KITS:
- WITH LAMP RATED 105 W MAX, E27 SCREW FITTING
- WITH 2X15 W MAX ENERGY SAVING LAMP, E27 SCREW FITTING (MANDATORY IN EU).
• SPEED SELECTABLE BY WAY OF CONTROL UNITS OR TELENORDIK 5TR REMOTE CONTROL (OPTIONAL)
NORDIK EVOLUTION UMKEHRBAR 140/56" SILBER 61757
FREQUENCY (HZ): 50
INSULATION CLASS: I°
VOLTAGE (V): 220-240
AIRFLOW SPEED AT MAX SPEED (M/S): 2,08
DELIVERY MAX (M³/H): 16586
DELIVERY MAX (M³/MIN): 276,43
RPM: 197
SERVICE VALUE (M³/MIN)/W: 3,949
SOUND POWER LEVEL LW [DB(A)]: 52,6
SIZE A (MM): 980
SIZE B (MM): 298
SIZE C (MM): 495
SIZE D (MM): 229
SIZE E (MM): 724
SIZE F (MM): 291
SIZE G (MM): 145
SIZE H (MM): 640
SIZE L (MM): 291
