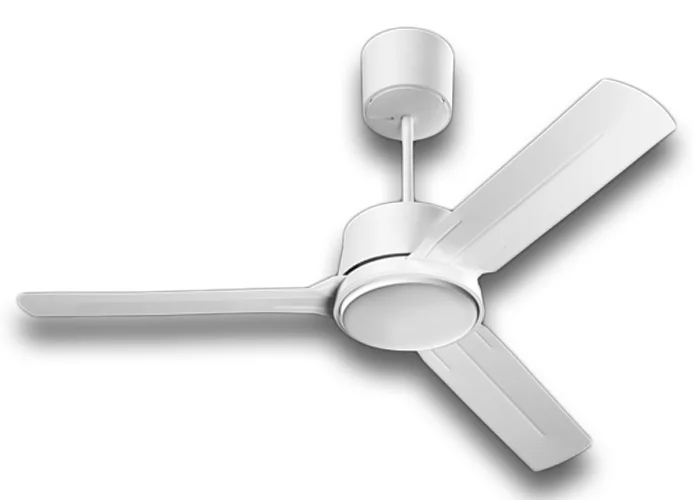

vortice Deckenventilator nordik eco 90/36" weiß 61060

SKU: 61060

631,01 €INKL. MwSt.

VORTICE - NORDIK ECO DECKENVENTILATOR, WEIß, OHNE LICHT UND BEFEHLSGERÄTE, DURCHMESSER 90

• NOMINAL DIAMETER OF BLADES 900 MM.
• CUPS AND MOTOR COVERS MOLDED IN HEAT-RESISTANT POLYMER (ASA), MATT WHITE (RAL9016).
• EC (BRUSHLESS) MOTOR WITH SHAFT TURNING IN BALL BEARINGS, REVERSIBLE FUNCTION, ABLE TO GRANT HIGH PERFORMANCE THROUGHOUT THE OPERATING RANGE. INTEGRATED MOTOR DRIVER.
• 3 POWDER COATED SHEET STEEL BLADES, MATT WHITE (RAL9016).
• POWDER COATED STEEL CEILING ROD, MATT WHITE (RAL9016).
• ACCESSORIES BAG CONTAINING FIXING BOLTS FOR BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.
• POSSIBILITY OF SPEED REGULATION BY POTENTIOMETER OR IR REMOTE CONTROL (OPTIONAL).



NORDIK ECO 90/36"      61060

ABSORBED CURRENT MAX (A): 0,26
ABSORBED POWER MAX (W): 27
BLADES DIAMETER: 914
FREQUENCY (HZ): 50
INSULATION CLASS: I°
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 45
VOLTAGE (V): 220-240
WEIGHT (KG): 7,5
AIRFLOW SPEED AT MAX SPEED (M/S): 2,88
DELIVERY MAX (M³/H): 9500
DELIVERY MAX (M³/MIN): 158,33
RPM: 250
SERVICE VALUE (M³/MIN)/W: 5,864
SOUND POWER LEVEL LW [DB(A)]: 45,6


SIZE A (MM): Ø 914
SIZE B (MM): Ø 237
SIZE C (MM): 535

  • Marke: VORTICE

Berechnen Sie die Versandkosten für diesen Artikel

  • Versand INKL. MwSt. 17,99 €

  • Jeder weitere Artikel 8,00 €
