VORTICE - NORDIK ECO DECKENVENTILATOR, WEIß, OHNE LICHT UND BEFEHLSGERÄTE, DURCHMESSER 180
• NOMINAL DIAMETER OF BLADES 1800 MM.
• CUPS AND MOTOR COVERS MOLDED IN HEAT-RESISTANT POLYMER (ASA), MATT WHITE (RAL9016).
• EC (BRUSHLESS) MOTOR WITH SHAFT TURNING IN BALL BEARINGS, REVERSIBLE FUNCTION, ABLE TO GRANT HIGH PERFORMANCE THROUGHOUT THE OPERATING RANGE. INTEGRATED MOTOR DRIVER.
• 3 POWDER COATED SHEET STEEL BLADES, MATT WHITE (RAL9016).
• POWDER COATED STEEL CEILING ROD, MATT WHITE (RAL9016).
• ACCESSORIES BAG CONTAINING FIXING BOLTS FOR BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.
• POSSIBILITY OF SPEED REGULATION BY POTENTIOMETER OR IR REMOTE CONTROL (OPTIONAL).

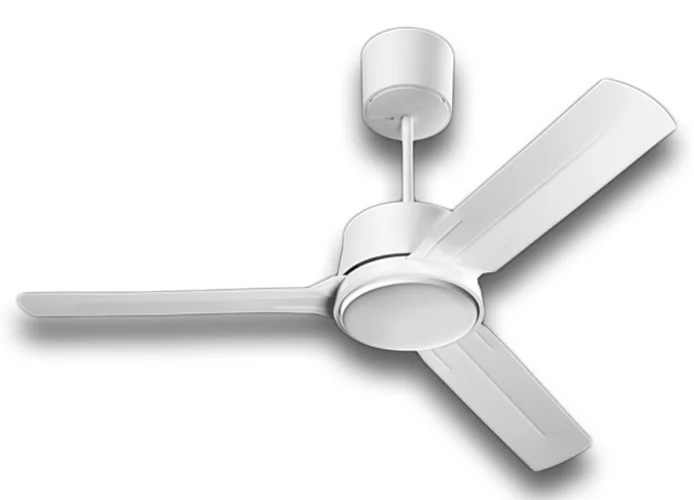

(DAS BILD BEZIEHT SICH AUF DAS MODELL Ø 90/36")
NORDIK ECO 180/70" 61064
ABSORBED CURRENT MAX (A): 0,37
ABSORBED POWER MAX (W): 40
BLADES DIAMETER: 1800
FREQUENCY (HZ): 50
INSULATION CLASS: I°
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 45
VOLTAGE (V): 220-240
WEIGHT (KG): 9,7
AIRFLOW SPEED AT MAX SPEED (M/S): 1,59
DELIVERY MAX (M³/H): 21000
DELIVERY MAX (M³/MIN): 350
RPM: 205
SERVICE VALUE (M³/MIN)/W: 8,750
SOUND POWER LEVEL LW [DB(A)]: 56,9
SIZE A (MM): Ø 1800
SIZE B (MM): Ø 237
SIZE C (MM): 535
