VORTICE - NORDIK ECO DECKENVENTILATOR, WEIß, OHNE LICHT UND BEFEHLSGERÄTE, DURCHMESSER 140
• NOMINAL DIAMETER OF BLADES 1400 MM.
• CUPS AND MOTOR COVERS MOLDED IN HEAT-RESISTANT POLYMER (ASA), MATT WHITE (RAL9016).
• EC (BRUSHLESS) MOTOR WITH SHAFT TURNING IN BALL BEARINGS, REVERSIBLE FUNCTION, ABLE TO GRANT HIGH PERFORMANCE THROUGHOUT THE OPERATING RANGE. INTEGRATED MOTOR DRIVER.
• 3 POWDER COATED SHEET STEEL BLADES, MATT WHITE (RAL9016).
• POWDER COATED STEEL CEILING ROD, MATT WHITE (RAL9016).
• ACCESSORIES BAG CONTAINING FIXING BOLTS FOR BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.
• POSSIBILITY OF SPEED REGULATION BY POTENTIOMETER OR IR REMOTE CONTROL (OPTIONAL).

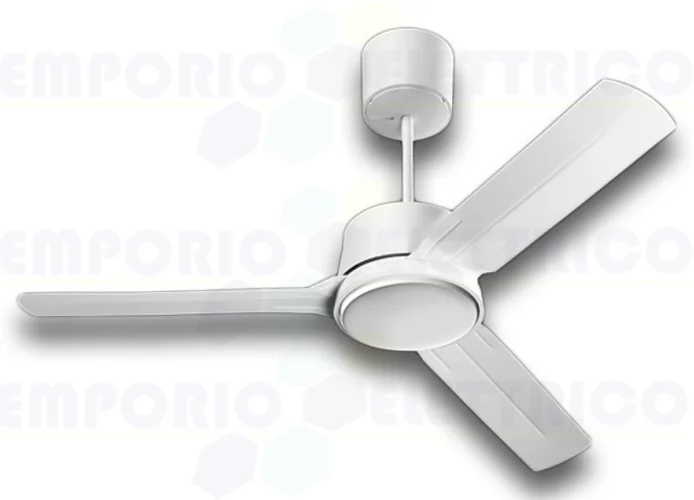

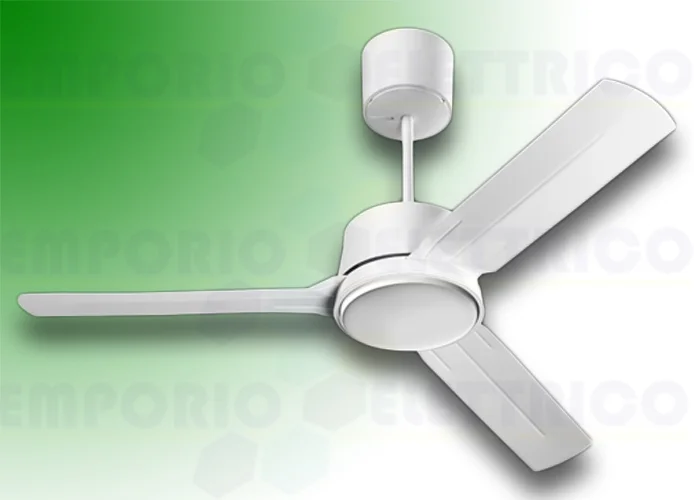

(DAS BILD BEZIEHT SICH AUF DAS MODELL Ø 90/36")
NORDIK ECO 140/56" 61062
ABSORBED CURRENT MAX (A): 0,29
ABSORBED POWER MAX (W): 30
BLADES DIAMETER: 1422
FREQUENCY (HZ): 50
INSULATION CLASS: I°
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 45
VOLTAGE (V): 220-240
WEIGHT (KG): 8
AIRFLOW SPEED AT MAX SPEED (M/S): 2,07
DELIVERY MAX (M³/H): 16500
DELIVERY MAX (M³/MIN): 275,00
RPM: 235
SERVICE VALUE (M³/MIN)/W: 9,167
SOUND POWER LEVEL LW [DB(A)]: 53,9
SIZE A (MM): Ø 1422
SIZE B (MM): Ø 237
SIZE C (MM): 535
