VORTICE - DECKENVENTILATOR SERIE NORDIK DESIGN, LACK WEIß, MIT LICHT UND OHNE GRUPPE VON STEUERUNG, DURCHMESSER 160
• TOP AND BOTTOM MOTOR COVERS MOULDED FROM HEAT-RESISTANT AND UV-RESISTANT THERMOPLASTIC RESIN (ABS), COLOUR WHITE
• WIRING CONNECTIONS AT END OF CEILING ROD CONCEALED BY DOMES MOULDED FROM IMPACT- AND UV-RESISTANT PP, COLOUR WHITE.
• NOMINAL DIAMETER OF BLADES 1600 MM.
• SINGLE PHASE START CAPACITOR MOTOR WITH EXTERNAL ROTOR, AND SHAFT TURNING IN BALL BEARINGS.
• MAXIMUM AIR FLOW 14,000 M3/H
• 3 GALVANIZED SHEET STEEL BLADES POWDER COATED WITH SCRATCH-RESISTANT POLYESTER, COLOUR WHITE
• STEEL CEILING ROD WITH POLYESTER POWDER COATED FINISH, COLOUR WHITE, LENGTH 375 MM
• BAG OF ACCESSORIES CONTAINING NUTS AND BOLTS REQUIRED FOR ASSEMBLY OF BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.
• GLOBE LAMPSHADE OF LAMINATED GLASS, COLOUR OPALINE; E27 SCREW HOLDER FOR LAMP RATED 150W MAX, OR EQUIVALENT ENERGY SAVING LAMP WITH E27 FITTING, MANDATORY IN EU.
• SPEED SELECTABLE BY WAY OF CONTROL UNITS WITH ON/OFF LIGHT SWITCH OR TELENORDIK 5T REMOTE CONTROL (OPTIONAL)

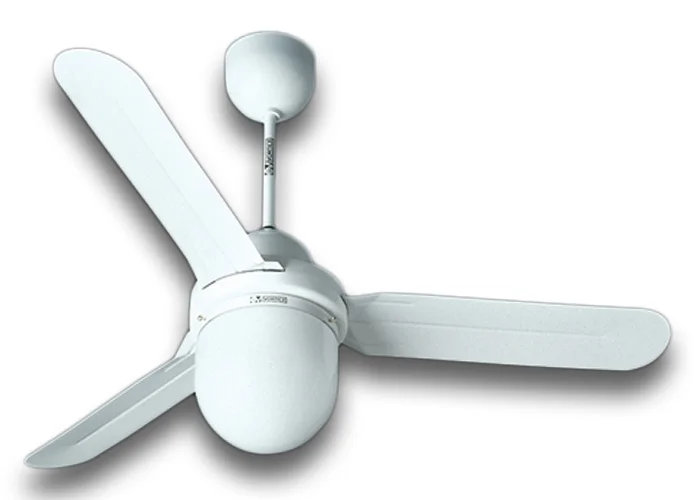

DAS BILD BEZIEHT SICH AUF DAS MODELL Ø 90 CM
NODIK DESIGN IS 160/60" LACK WEIß MIT LICHT 61401
ABSORBED CURRENT MAX (A): 0,740
ABSORBED POWER MAX (W): 175
BLADES DIAMETER: 160
FREQUENCY (HZ): 50
INSULATION CLASS: I°
VOLTAGE (V): 220-240
WEIGHT (KG): 7,7
AIRFLOW SPEED AT MAX SPEED (M/S): 1,34
DELIVERY MAX (M³/H): 14000
DELIVERY MAX (M³/MIN): 233,33
GIRI_MINUTO: 215
RPM: 215
SERVICE VALUE (M³/MIN)/W: 1,061
SOUND POWER LEVEL LW [DB(A)]: 55,5
SIZE A (MM): Ø 1524
SIZE B (MM): Ø 230
SIZE C (MM): 495
SIZE D (MM): 190
SIZE E (MM): 685
SIZE F (MM): Ø 208
