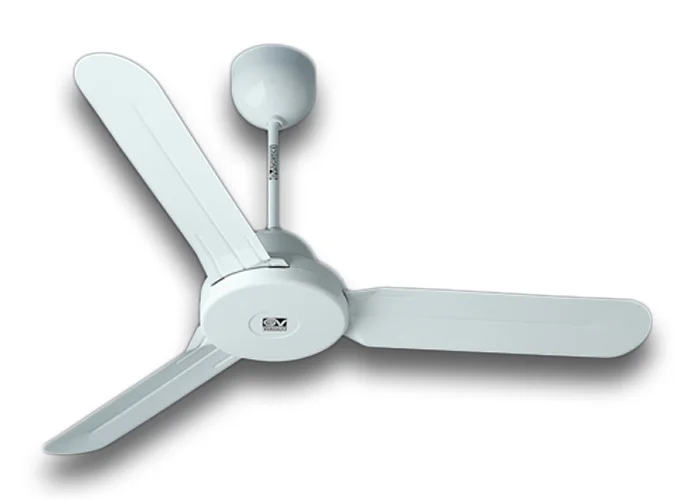

VORTICE - DECKENVENTILATOR SERIE NORDIK DESIGN, LACK WEIß, OHNE LICHT UND OHNE GRUPPE VON STEUERUNG, DURCHMESSER 120
• TOP AND BOTTOM MOTOR COVERS MOULDED FROM HEAT-RESISTANT AND UV-RESISTANT THERMOPLASTIC RESIN (ABS), COLOUR WHITE
• WIRING CONNECTIONS AT END OF CEILING ROD CONCEALED BY DOMES MOULDED FROM IMPACT- AND UV-RESISTANT PP, COLOUR WHITE.
• NOMINAL DIAMETER OF BLADES 1200 MM.
• SINGLE PHASE START CAPACITOR MOTOR WITH EXTERNAL ROTOR, AND SHAFT TURNING IN BALL BEARINGS.
• MAXIMUM AIR FLOW: 11,820 M3/H.
• 3 GALVANIZED SHEET STEEL BLADES POWDER COATED WITH SCRATCH-RESISTANT POLYESTER, COLOUR WHITE
• STEEL CEILING ROD WITH POLYESTER POWDER COATED FINISH, COLOUR WHITE, LENGTH 375 MM
• BAG OF ACCESSORIES CONTAINING NUTS AND BOLTS REQUIRED FOR ASSEMBLY OF BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.
• SPEED SELECTABLE BY WAY OF CONTROL UNITS OR TELENORDIK 5T REMOTE CONTROL (OPTIONAL)
DAS BILD BEZIEHT SICH AUF DAS MODELL Ø 90 CM
IS 120/48" LACK WEIß OHNE LICHT 61260
ABSORBED CURRENT MAX (A)0,33
ABSORBED POWER MAX (W)70
BLADES DIAMETER120
FREQUENCY (HZ)50
INSULATION CLASSI°
VOLTAGE (V)220-240
WEIGHT (KG)5,5
AIRFLOW SPEED AT MAX SPEED (M/S)2,02
DELIVERY MAX (M³/H)11820
DELIVERY MAX (M³/MIN)197,00
GIRI_MINUTO205
RPM205
SERVICE VALUE (M³/MIN)/W2,814
SOUND POWER LEVEL LW [DB(A)]49,1
SIZE A (MM)Ø 1218
SIZE B (MM)Ø 230
SIZE C (MM)495
