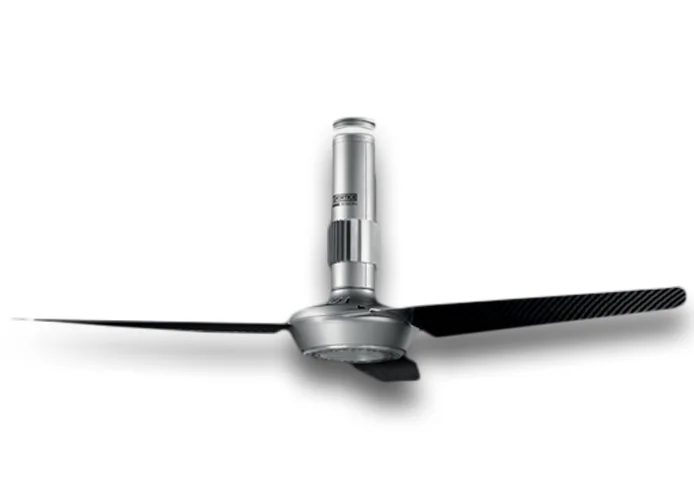

vortice Deckenventilator nordik air design 160-29 Titan 61038

SKU: 61038

2.356,72 €INKL. MwSt.

VORTICE - UMKEHRBARER DECKENVENTILATOR NORDIK AIR DESIGN MIT 3 FLÜGELN AUS CARBON, 160 DURCHMESSER, DECKENSTANGEN (520 cm), FARBE: TITAN.
IM PRIVATEN UND KOMMERZIELLEN VERWENDEN


• NOMINAL DIAMETER OF BLADES: 1600 MM
• CUPS, MOTOR COVER AND CEILING ROD CASING MADE OF TITANIUM THERMOPLASTIC RESIN (POLYCARBONATE).
• BALL BEARINGS EXTERNAL ROTOR MOTOR. REVERSIBLE ROTATION.
• 3 CARBON FIBER MADE BLADES, AIRFOIL SHAPED.
• ROD MADE OF ELECTROGALVANIZED STEEL, LENGTH 290 MM.
• LIGHTING SYSTEM BASED ON LED TECHNOLOGY (COLOR TEMPERATURE 3.500 °K), 3 DIFFERENT LIGHTING MODES AVAILABLE:
O HOME: THIS OPTION ACTIVATES 60 LED PLACED ON THE CENTRAL AREA OF THE CEILING LIGHT. THE ENTIRE UNDERNEATH AREA IS COVERED BY A DIFFUSED AND UNIFORM LIGHT (MAXIMUM SURFACE 30 M2).
O WORK (“DARK LIGHT”): THE OPTION ACTIVATES 50 LED PLACED ON THE OUTER RING OF THE CEILING LIGHT. A SMALL AREA IS ILLUMINATED AVOIDING RISKS OF GLARE.
O MIXED: ALL 110 LED ARE ACTIVATED; THE ENTIRE AREA IS ILLUMINATED.
THE LIGHT INTENSITY CAN BE ADJUSTED TO ACHIEVE THE REQUIRED INTENSITY ILLUMINATION.
• REMOTE CONTROL (RF TECHNOLOGY); SUPPLIED WITH THE PRODUCT, ALLOWS TO:
O SWITCH ON/OFF THE PRODUCT;
O SET THE ROTATION SPEED (5 SPEEDS AVAILABLE);
O SET THE ROTATION SENSE (CW OR CCW);
O SWITCH ON/OFF THE LIGHT AND SET 3 ALTERNATIVE LIGHTING MODES;
O ADJUST THE LIGHT INTENSITY (5 LEVELS AVAILABLE);
O SET THE DELAYED SHUTDOWN OF THE CEILING FAN (TIMER).
• SAFETY CABLE TO PREVENT ANY RISK OF FALL IN CASE OF IMPROPER INSTALLATION.




NORDIK AIR DESIGN 160-29 TITAN    61038
ABSORBED CURRENT MAX (A): 0,54
ABSORBED POWER MAX (W): 115
BLADES DIAMETER: 1600
FREQUENCY (HZ): 50
INSULATION CLASS: I°
VOLTAGE (V): 220-240
WEIGHT (KG): 10
AIRFLOW SPEED AT MAX SPEED (M/S): 1,49
DELIVERY MAX (M³/H): 15500
DELIVERY MAX (M³/MIN): 258,33
RPM: 162
SERVICE VALUE (M³/MIN)/W: 2,246
SOUND POWER LEVEL LW [DB(A)]: 48,7


SIZE A (MM): Ø 1600
SIZE B (MM): 520
SIZE C (MM): 545
SIZE D (MM): Ø 300

  • Marke: VORTICE
