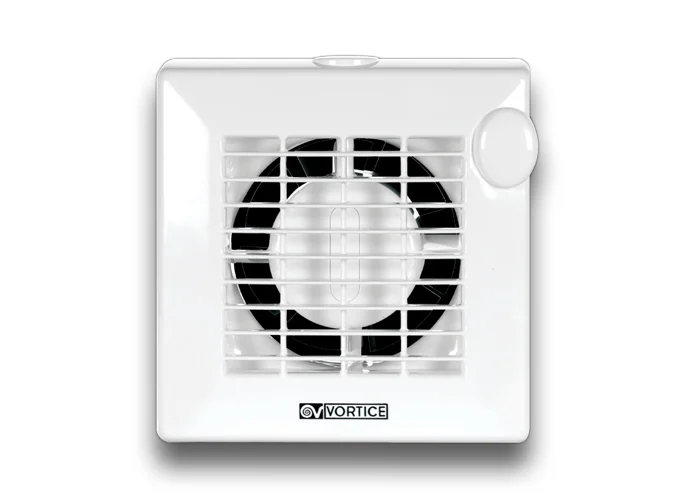

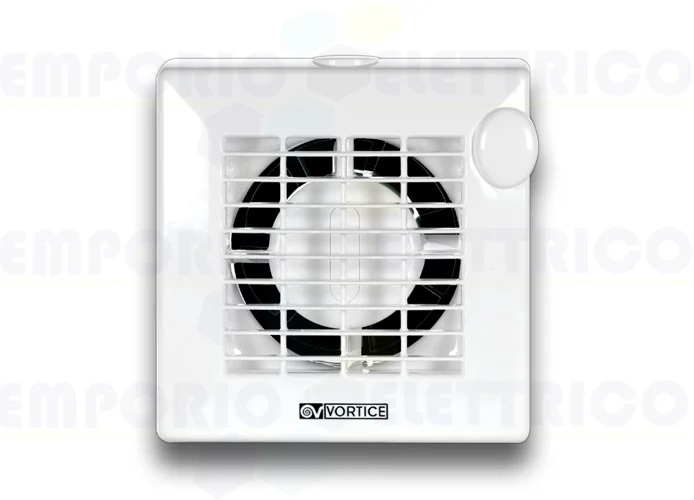

VORTICE - AXIALER WANDVENTILATOR PUNTO-SERIE
- CONSTRUCTION IN PLASTIC RESIN RESISTANT TO AGEING DUE TO SUN EXPOSURE ("UV RESISTANT").
- NOMINAL DIAMETER 90 MM.
- THERMALLY PROTECTED MOTOR WITH SHAFT ON SELF-LUBRICATING BUSHINGS SUPPORTS, COMBINED WITH A HELICAL IMPELLER IN THERMOPLASTIC MATERIAL WITH WING PROFILE BLADES.
- MAXIMUM CAPACITY 70 M3/H.
- SAFETY AND PERFORMANCE CERTIFIED IMQ AND IMQ PERFORMANCE
- SPEED CONTROLLABLE BY VORTEX REGULATOR.
PUNTO Serie M 90/3,5" 11150
MAX. CURRENT CONSUMPTION (A): 0.1
NOMINAL DUCT DIAMETER (MM) :90
FREQUENCY (HZ) :50
PROTECTION DEGREE :IPX4
INSULATION: 2ND CLASS
Ø EXHAUST (MM): 90
WEIGHT (KG): 0.55
MAX. POWER CONSUMPTION (W): 18
TEMP. ENVIRONMENT MAX. CONTINUOUS OPERATION (°C): 50
VOLTAGE (V): 230-240
MAX FLOW RATE (L/S): 19
MAX FLOW RATE (M³/H): 70
MAX PRESSURE (MMH2O): 2,3
MAX PRESSURE (PA): 23
SOUND PRESSURE LP [DB (A)] 3M: 39
RPM: 2500
| Ø NW (mm) | 90 |
| Gewicht (Kg) | 0,55 |
| Leistungsaufnahme (W) | 18 |
| Raumtemperatur C° | 50 |
| Stromaufnahme (A) | 0,1 |
| Schalldruck [Lp dB(A) 3m] | 39 |
| Drehzahl | 2500 |
| Luftleistung (m³/h) | 70 |
| Reichweite (l/s) | 19 |
| Pressung (mm/H2O) | 2,3 |
| Gesamtdruck (Pa) | 23 |
| Abmessung A (mm) | 159 |
| Abmessung B (mm) | 160 |
| Abmessung C (mm) | 100 |
| Abmessung D (mm) | 47 |
| Abmessung E (mm) | Ø 92,5 |
