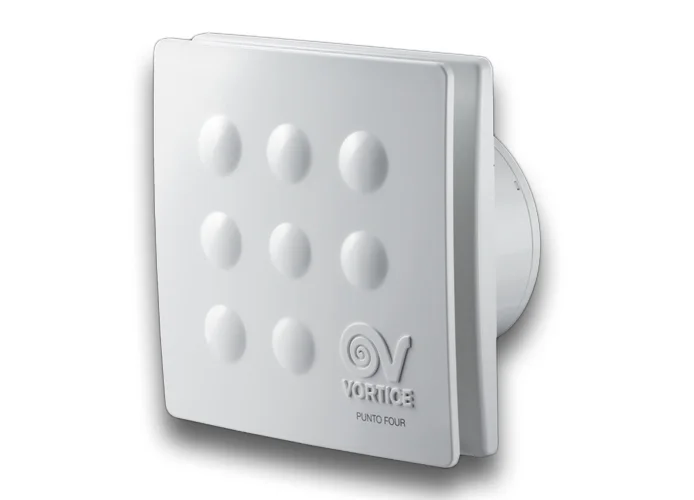

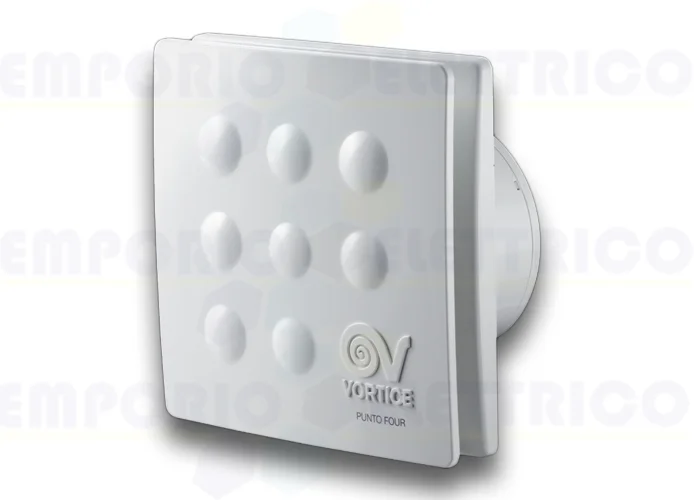

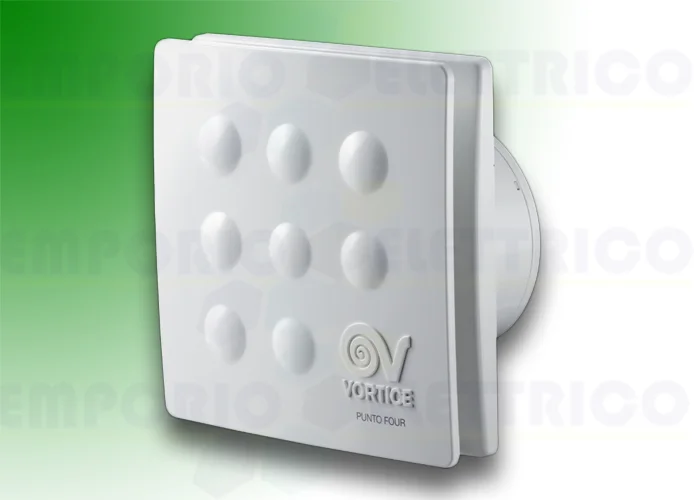

VORTICE - AXIALER WANDVENTILATOR PUNTO FOUR-SERIE
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 90 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 65 M3/H.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS
• VORTICE SPEED CONTROLLER.
PUNTO FOUR Serie MFO 90/3,5" 11143
ABSORBED CURRENT MAX (A): 0,08
ABSORBED POWER MAX (W): 14
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
NOMINAL DIAMETER (MM): 90
VOLTAGE (V): 220-240
WEIGHT (KG): 0,555
DELIVERY MAX (L/S): 18
DELIVERY MAX (M³/H): 65
PRESSURE MAX (MMH2O): 2,5
PRESSURE MAX (PA): 25
RPM: 2540
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 29,6
SIZE A (MM): 158
SIZE B (MM): 37
SIZE C (MM): 97
SIZE D (MM): 92,4
