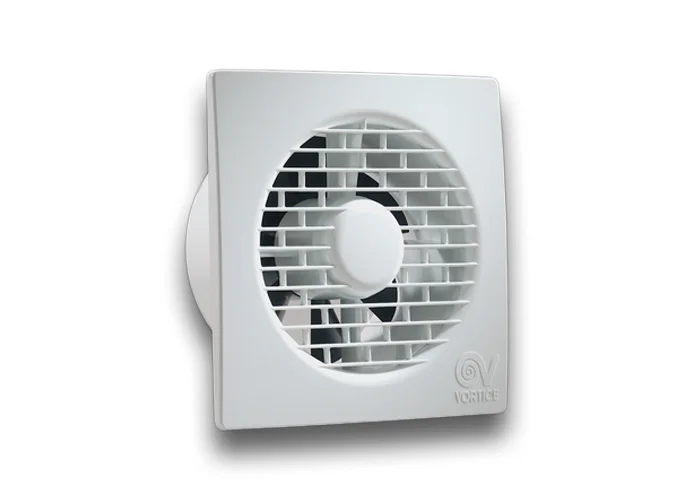

VORTICE - AXIALER WANDVENTILATOR PUNTO FILO-SERIE
• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 150 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.
• MAXIMUM AIR FLOW: 335 M3/H.
• NON-RETURN DAMPER FITTED TO OUTLET PORT.
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.
• VORTICE SPEED CONTROLLER.
PUNTO FILO Serie MF 150/6" 11125
ABSORBED CURRENT MAX (A): 0,15
ABSORBED POWER MAX (W): 28
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: X4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
NOMINAL DIAMETER (MM): 150
Ø DISCHARGE HOLE (MM): 156
VOLTAGE (V): 220-240
WEIGHT (KG): 0,97
DELIVERY MAX (L/S): 93
DELIVERY MAX (M³/H): 335
PRESSURE MAX (MMH2O): 6
PRESSURE MAX (PA): 59
RPM: 2100
SOUND PRESSURE LEVEL LP [DB (A)] 3M: 40,1
SIZE A (MM): 214
SIZE B (MM): 17
SIZE C (MM): 96
SIZE D (MM): 156
