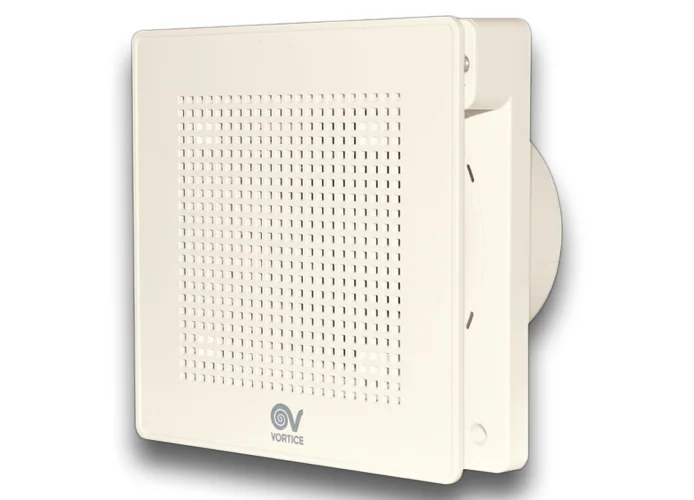

VORTICE - AXIALER WANDVENTILATOR PUNTO EVO-SERIE
• MATERIAL: UV RESISTANT WHITE PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).
• NOMINAL DIAMETER 120 MM.
• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN BALL BEARINGS; 2 OPERATING SPEEDS CONTROLLED ELECTRONICALLY FROM PCB.
• AIR FLOW BETWEEN 120 M3/H AND 175 M3/H.
• EQUIPPED WITH NON-RETURN DAMPER PREVENTING UNWANTED BACKDRAUGHT WHEN THE FAN IS OFF.
• IMQ SAFETY CERTIFICATION.
PUNTO EVO Serie ME 120/5" LL 11270
ABSORBED POWER 1ST SPEED (W): 10
FREQUENCY (HZ): 50
INSULATION CLASS: II°
IP: 45
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50
MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,080
MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,060
MAX. ABSORBED POWER AT MAX SPEED (W): 13
NOMINAL DIAMETER (MM): 120
VOLTAGE (V): 220-240
WEIGHT (KG): 0,77
DELIVERY 1ST SPEED (L/S): 33,3
DELIVERY 1ST SPEED (M³/H): 120
MAX DELIVERY AT MAX SPEED (L/S): 48,6
MAX DELIVERY AT MAX SPEED (M³/H): 175
PRESSURE - 1ST SPEED (MMH20): 2,3
PRESSURE - 1ST SPEED (PA): 22,56
PRESSURE MAX - MAX SPEED (MMH20): 5
PRESSURE MAX - MAX SPEED (PA): 49,04
RPM MAX: 2070
RPM MIN: 1490
SOUND POWER LW [DB(A)] - MIN SPEED: 44,5
SOUND POWER LW [DB(A)] - MAX SPEED: 52,8
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX SPEED: 32,3
SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MIN SPEED: 24,0
SIZE A (MM): 179
SIZE B (MM): 179
SIZE C (MM): 127
SIZE D (MM): Ø 118
SIZE E (MM): 71
SIZE F (MM): 42,5
SIZE G (MM): 152
SIZE H (MM): 152
SIZE L (MM): Ø 3,5
