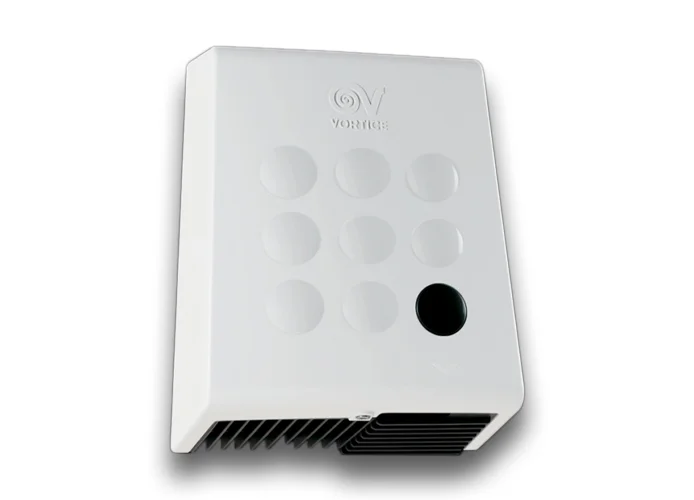

VORTICE - AUTOMATISCHER HÄNDETROCKNER
• FRONT COVER MADE OF UV-RESISTANT PLASTIC RATED V0, COLOUR WHITE.
• WALL-MOUNTING FLANGE INCORPORATING WARM AIR OUTLET GRILLE OF MOULDED PLASTIC (PP).
• EC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS, COUPLED TO FORWARD-BLADED CENTRIFUGAL IMPELLER.
• HEATING ELEMENT PROTECTED BY 2 DEVICES: THERMAL FUSE AND RESETTABLE THERMAL OVERLOAD LIMITER.
• AIR FLOW 170 M3/H.
• DRYER OPERATED AUTOMATICALLY BY AN INFRARED DEVICE WITH ACTIVATION DISTANCE OF UP TO 35 CM, SELECTED BY MEANS OF AN INTERNAL TRIMMER ADJUSTABLE AT THE MOMENT OF INSTALLATION. APPLIANCE SHUTS DOWN AUTOMATICALLY IN THE EVENT OF THE AIR INLET GRILLE OR THE WARM AIR OUTLET NOZZLE BEING OBSTRUCTED INTENTIONALLY OR ACCIDENTALLY.
• DUST FILTER.
• IMQ SAFETY CERTIFICATION.
OPTIMAL DRY A 19229
ABSORBED CURRENT MAX (A): 9
ABSORBED POWER MAX (W): 2000
FREQUENCY (HZ): 50-60
INSULATION CLASS: II°
IP: X4
MOTOR POWER (W): 65
SHOCK RESISTANCE RATING (IK): 09
VOLTAGE (V): 220-240
WEIGHT (KG): 2,6
DELIVERY MAX (L/S): 47
DELIVERY MAX (M³/H): 170
POWER IN STAND-BY MODE (W): 0,4550
SOUND PRESSURE LEVEL LP [DB (A)] 1M: 61,4
SIZE A (MM): 253
SIZE B (MM): 319
SIZE C (MM): 137
SIZE D (MM): 220
