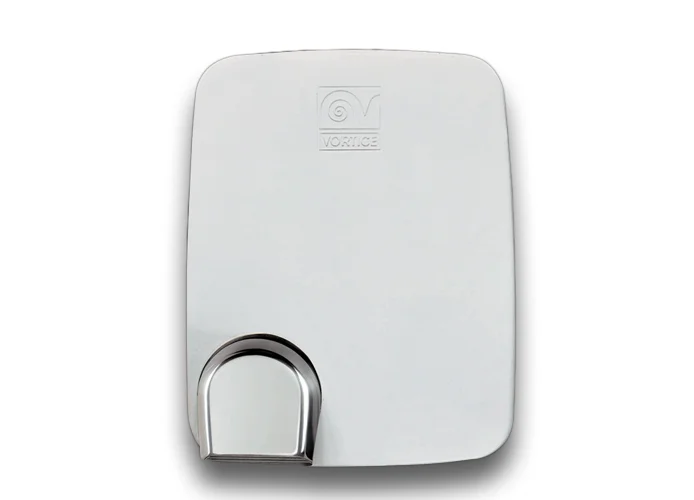

VORTICE - AUTOMATISCHER HÄNDETROCKNER
• FRONT COVER MADE OF PRESSURE DIECAST ALUMINIUM WITH SCRATCH-RESISTANT WHITE POWDER-COATED FINISH, CLOSURE WITH VANDAL-PROOF SCREWS.
• PLASTIC WALL MOUNTING FLANGE (TALC-FILLED PP).
• NOZZLE ROTATABLE THROUGH 360°, GRILLE WITH SCRATCH-RESISTANT POWDER-COATED FINISH, TRANSPARENT PROTECTION.
• SCROLL AND MOTOR MOUNTING COWL MOULDED FROM ABS
• AC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS, COUPLED TO FORWARD-BLADED CENTRIFUGAL IMPELLER.
• HEATING ELEMENT PROTECTED BY 2 DEVICES: THERMAL FUSE AND RESETTABLE THERMAL OVERLOAD LIMITER.
• AIR FLOW 190 M3/H.
• DRYER OPERATED AUTOMATICALLY BY AN INFRARED DEVICE WITH ACTIVATION DISTANCE OF UP TO 35 CM, SELECTED BY MEANS OF AN INTERNAL TRIMMER ADJUSTABLE AT THE MOMENT OF INSTALLATION. APPLIANCE SHUTS DOWN AUTOMATICALLY IN THE EVENT OF THE AIR INLET GRILLE OR THE WARM AIR OUTLET NOZZLE BEING OBSTRUCTED INTENTIONALLY OR ACCIDENTALLY.
• IMQ SAFETY CERTIFICATION.
METAL DRY AUTOMATIC 19220
ABSORBED CURRENT MAX (A): 8,5
ABSORBED POWER MAX (W): 1950
FREQUENCY (HZ): 50-60
INSULATION CLASS: II°
IP: X4
MOTOR POWER (W): 140
SHOCK RESISTANCE RATING (IK): 10
VOLTAGE (V): 220-240
WEIGHT (KG): 7,1
DELIVERY MAX (L/S): 53
DELIVERY MAX (M³/H): 190
POWER IN STAND-BY MODE (W): 0,2796
SOUND PRESSURE LEVEL LP [DB (A)] 1M: 69,8
SIZE A (MM): 280
SIZE B (MM): 355
SIZE C (MM): 202
SIZE D (MM): 139
